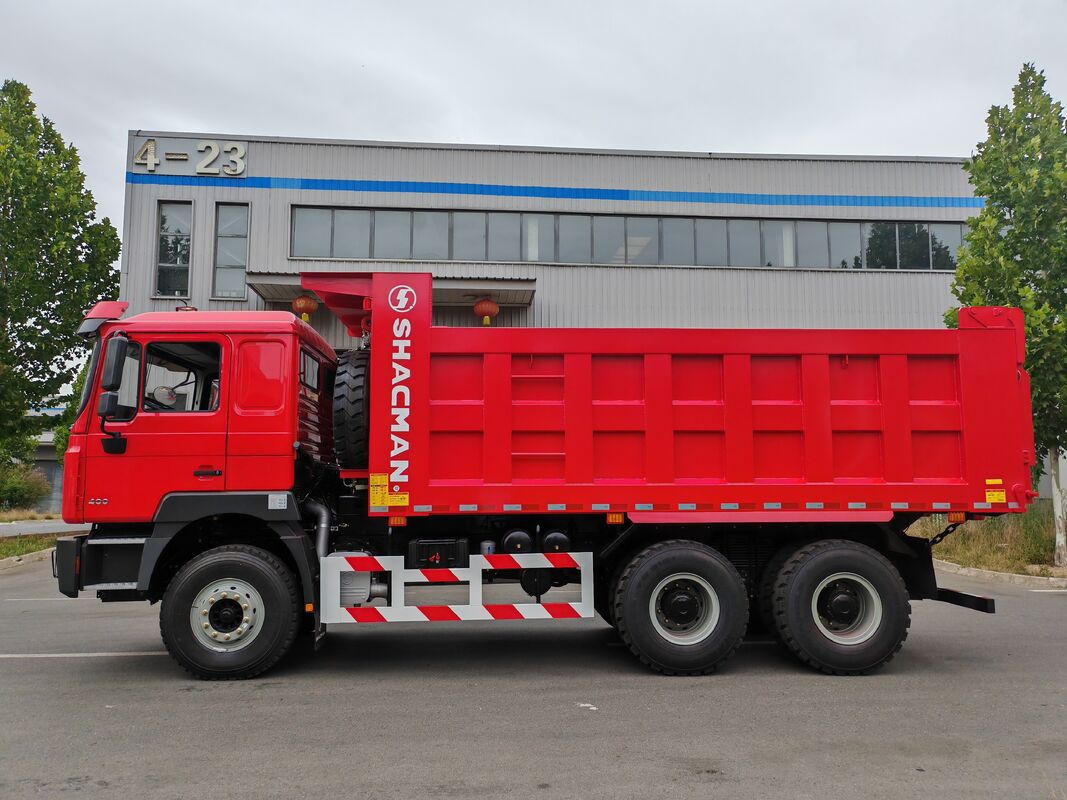

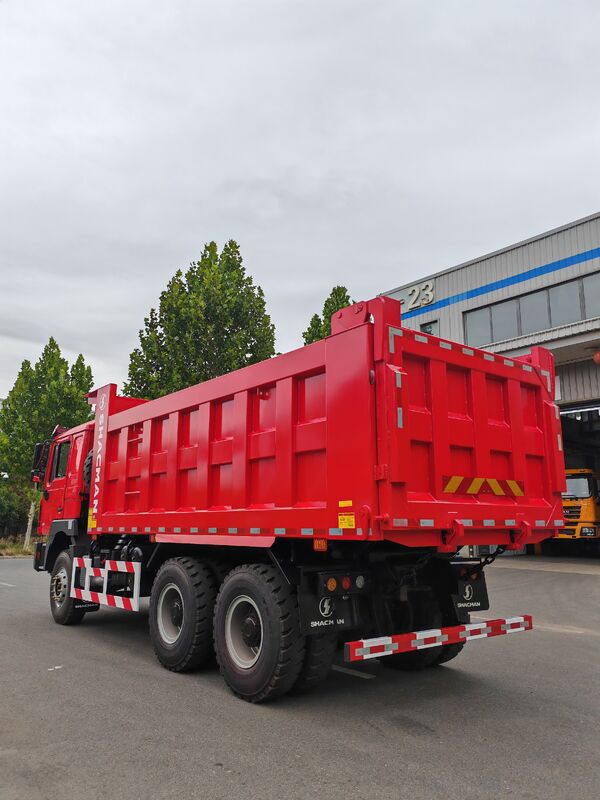

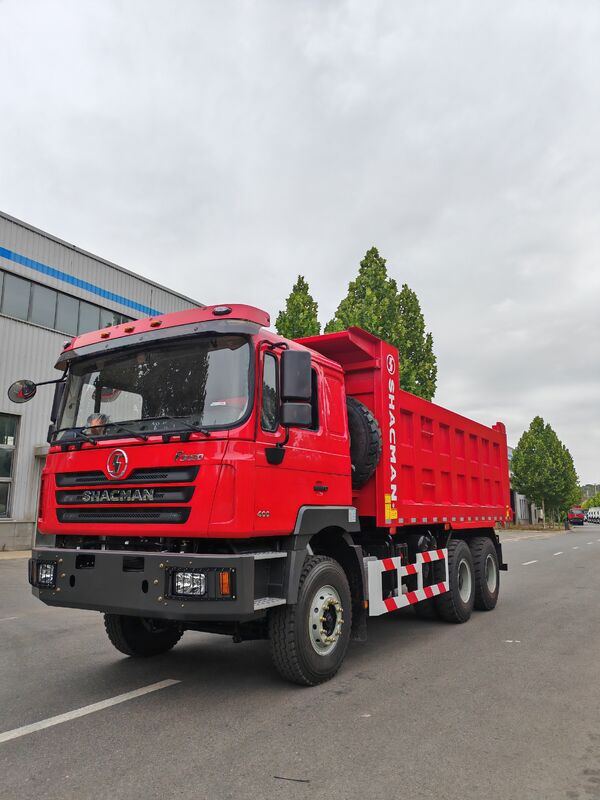

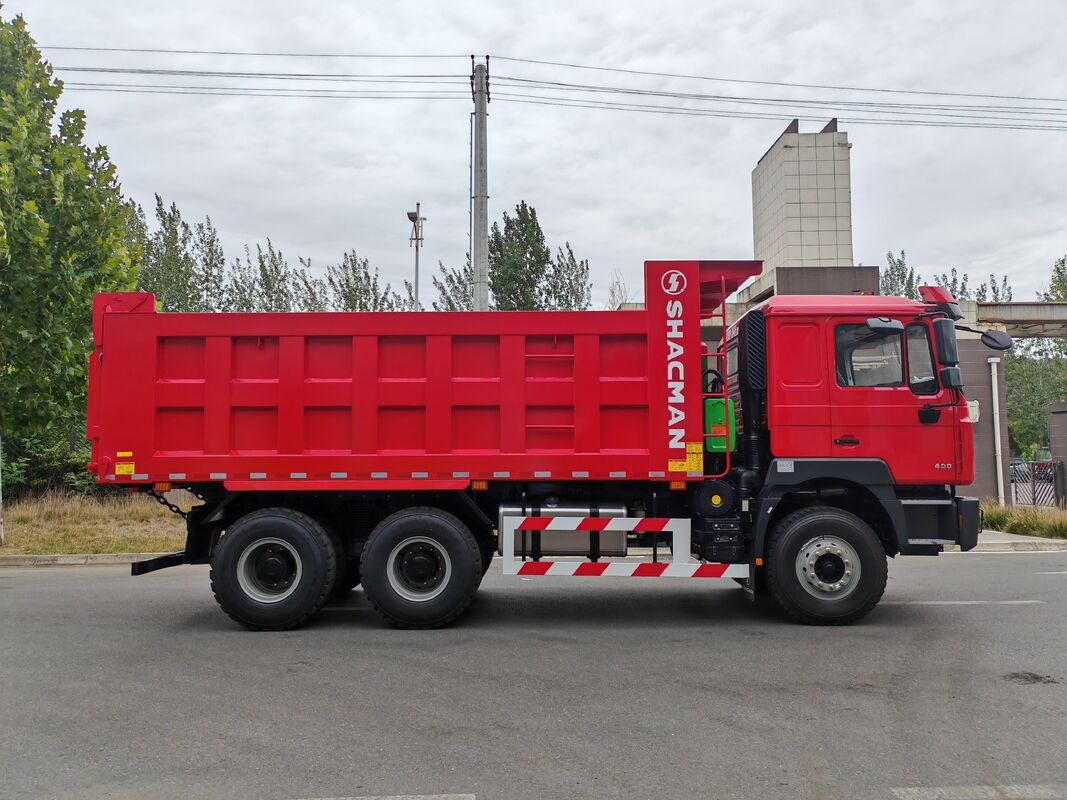

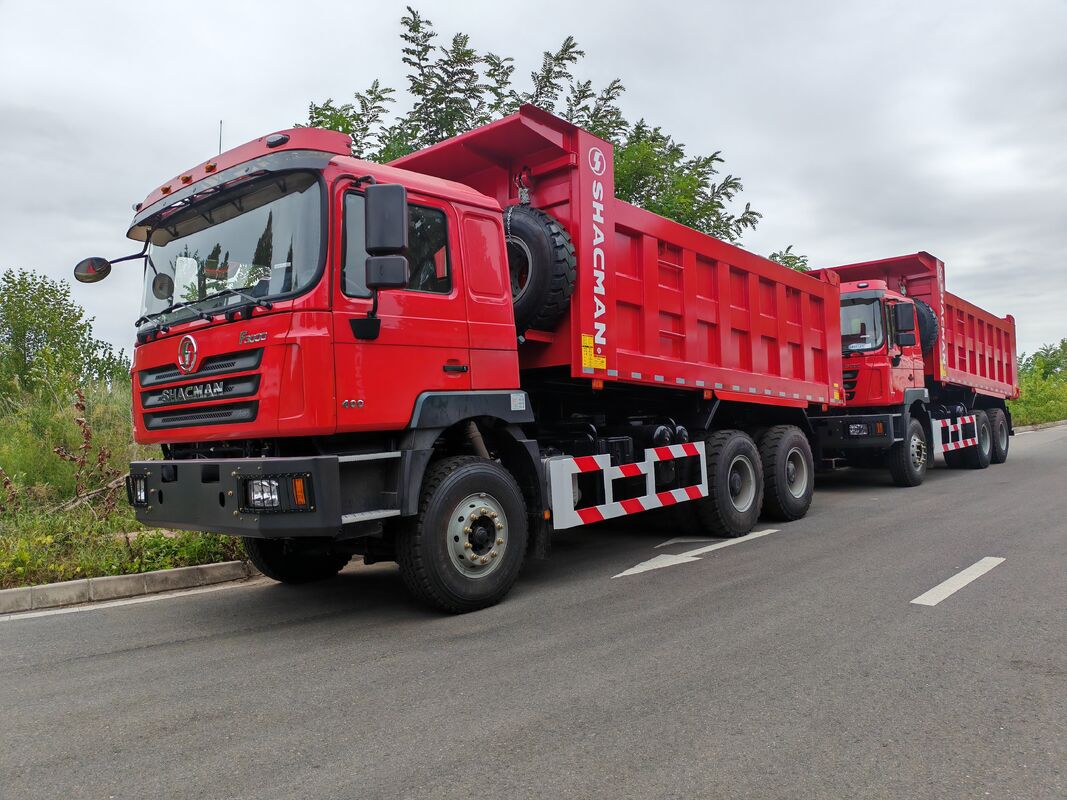

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

9.5T /2*16 T Axle Heavy Duty Dump Truck

300L Fuel Tank Dump Truck

3775+1400 mm Wheelbase Tipper Truck

Lieu d'origine:

Shaanxi, Xian

Nom de marque:

SHACMAN

Certification:

ISO 9001/CCC

Numéro de modèle:

F3000

Nous contacter
Demandez un devis
SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase
Détails de produit
MODÈLE:
SX3255DT364-Heavy duty
MOTEUR:
WP10.380E22
Transmission:
12JSD200T-B+QH50
Essieu:
Double-étape de 9.5T /2 *16 T, vitesse ratio-5.92
Base de roues:
3775+1400 millimètres
Pneu:
12.00R20
Réservoir à carburant:
300L
Embrayage:
φ430 Embrayage à ressort de diaphragme
Entrée d'air:
Filtre à air ordinaire
Châssis:
850 × 300 ((8 + 7)
suspension:
Plaque multi-couches avant / arrière printemps 4 plaques principales + 4 boulons en U
Cabine:
surface plane de la longueur du milieu
Couleur:
Vert rouge/vert au néon de montagne/bleu/eau-de-vie fine bleus Aurora White /Klein d'étoile et de lu
Mettre en évidence:

9.5T /2*16 T Axle Heavy Duty Dump Truck

,

300L Fuel Tank Dump Truck

,

3775+1400 mm Wheelbase Tipper Truck

Conditions de paiement et d'expédition
Quantité de commande min
1
Prix
negotiable
Détails d'emballage
Un paquet nu, avec de la cire avant expédition.
Délai de livraison
45 jours ouvrables
Conditions de paiement
T/T, L/C
Capacité d'approvisionnement
5000 unités/mois
Produits connexes
Nous contacter
Contact maintenant
Description de produit
SHACMAN F3000 6X4 Heavy Duty Dump Truck

Model SX3255DT364 with 9.5T /2*16 T Axle, 300L Fuel Tank, and Medium-length Flat Top Cabin

Product Overview

The SHACMAN F3000 Dump Truck 6x4 380Hp Euro II features a WEICHAI diesel engine, delivering robust performance for heavy-duty applications.

Detailed Specifications
Model: SX3255DT364-heavy duty
Drive type: 6x4
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power: 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50
Technical Parameters
Parameter Specification
Model SX3255DT364
Drive type 6x4
Gross Vehicle Weight ≤50
Wheelbase (mm) 3775+1400
Maximum speed (km/h) 45～60/80
Ground clearance >314
Maximum torque (N.M)/rpm 1600 N*M
Displacement (L) 9.726 L
Emission standard Euro II
Key Components
  • Gear box: FAST 12JSD200T-B+QH50
  • Clutch: φ430 Diaphragm spring clutch
  • Cooling: Domestic heat sink
  • Air inlet: Ordinary air filter
  • Brakes: Drum brake with double circuit air brake system
  • Steering: ZF8098 technology, circulating ball steering machine
  • Chassis: Parallel trapezoidal frame with variable section (850*300 (8+7))
  • Suspension: Multi-layered leaf springs (4 Main springs+4 U Bolts front and rear)
  • Axles: HANDE 9.5T front axle and 16T MAN Double Reduction Drive axle
  • Tires: 12.00R20
  • Fuel tank: 300L Aluminum tank
  • Electrics: 24V system with 165Ah Maintenance-free battery
Cab Features

SHACMAN F3000 Medium-length flat cab includes:

  • Hydraulic main seat
  • Four-point hydraulic suspension cab
  • Ordinary rearview mirror
  • Electronically controlled automatic constant temperature air conditioner
  • Electric window shaker
  • 165Ah maintenance-free Battery
  • SHACMAN logo and full English branding
Product Advantages
  • Ergonomic design focused on driver comfort and convenience
  • Spacious, driver-centric cabin environment reduces fatigue on long hauls
  • Adjustable seats and easy-to-reach controls enhance operational efficiency
  • Excellent visibility for improved safety
Company Information
Who are we?

We are based in Shaanxi, China, established in 2015. Our primary markets include Africa (70%), Southeast Asia (10%), Central America (10%), South America (4%), Mid East (2%), Eastern Asia (2%), and South Asia (2%). Our team consists of 11-50 professionals.

How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment.

What can you buy from us?

Our product range includes dump trucks, track trucks, lorry trucks, van trucks, and mixer trucks.

What services can we provide?
Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, D/P D/A
Languages: English, French, Russian, Spanish
